RF SENSOR TPMS+LAUNCH CRT5011E Relearn Tool OBD2 Scanner Code Reader

LAUNCH CRT5011E TPMS Programmer Tire Pressure Diagnostic Tool 315MHz 433MHz TPMS Sensor Activation Programming Learning Reading

CRT5011E is a professional TPMS diagnostic tool that integrates TPMS sensor activation, reading, learning and programming.It can activate and read tire pressure sensor information through high or low radio frequency and uses the OBD interface to reset the TPMS modules. Programming the sensor by receiving a high frequency 315MHz/433MHz

The key reason to Choose LAUNCH CRT5011E TPMS Diagnsotic Tool

1. 3.5 inch inch color screen
2. Activate all 315/433MHz tire sensor
3. Read, copy, write Sensor ID quickly
4. Program up to 8 sensors
5.Tire pressure fault diagnosis, including read DTC, clear DTC, etc.
6.Built-in tire pressure learning instruction makes operation more easy
7.Cover 98% global vehicles with tire pressure system
8. Offer lifetime free update Online

Sensor activation

LAUNCH X431 TSGUN can quickly activate the ID, wheel pressure, sensor frequency, tire temperature and battery status of the live sensor.

Sensor programming

The user can use this function to program the sensor data to a blank LAUNCH sensor to replace the sensor with insufficient power and not working properly.
Provides three sensor programming methods: automatic, manual and copy by activation.
The user can use this function to program the sensor data to a blank LAUNCH sensor to replace the sensor with insufficient power and not working properly.
Provides three sensor programming methods: automatic, manual and copy by activation.
automatic
When the original sensor ID cannot be obtained, this function can be used to program the LAUNCH sensor according to the ID randomly created by the test vehicle.
Manual
The original sensor ID can be obtained, and this function can be used to manually enter the ID or create it at will.
Copy by activation
By first activating the original sensor data, and then copying the activated sensor data into the LAUNCH sensor. Before using this method, the original sensor data must be activated.

TPMS learning

The user can use this function to write the newly programmed sensor ID into the vehicle ECU for sensor identification. Only when the newly programmed sensor ID is different from the original sensor ID stored in the vehicle ECU, the re-learning operation is required.
A total of three sensor learning methods are provided: static learning, self-learning and OBD re-learning

Static learning
Static learning needs to put the vehicle in "learning mode", and then follow the learning steps prompted on the screen.

self-study
For some vehicles, the learning function can be completed by driving the vehicle self-learning.

OBD re-learning
This function allows the diagnostic equipment to directly write the sensor ID to the TPMS module.
To perform the OBD re-learning function, first use the tire pressure tool to activate all four tire sensors. Then use the diagnostic equipment and its attached diagnostic connector, and follow the on-screen instructions to complete the re-learning operation.

OBD2 Diagnosis

check for DTCs, isolate the cause of the illuminated Malfunction Indicator Lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emission-related.

• Read dynamic data streams and MIL
• Read readiness status
• Freeze frame data
• Read DTCs
• Clear DTCs
• O2 sensor test
• On-board monitor test
• Read vehicle information

CRT5011E Car Supported List:

For ABARTH,for ACURA ,for ALFA ROMEO, for ASTON-MARTIN ,for AUDI , for ALPINA , for BAIC
, for BAOJUN, for BENTLEY,for BMW, for BORGWARD, for BUGATTI,for BUICK, for BYD, for
CADILLAC, for CHANGAN, for CHERY, for CHEVROLET, for CHRYSLER, for CITROEN, for CMC, for DACIA, for DAEWOO, for DFM, for DODGE, for FAW, for FERRARI, for GEELY, for GMC, for GREAT WALL, for HAVAL, for HAIMA, for HOLDEN, for HONDA, for HSV, for HUMMER, for HYUNDAI, for
INFINITI, for ISUZU, for JAC, for JAGUAR, for JEEP, for KIA, for LADA , for LAM BORGH-INI, for LANCIA, for LANDROVER, for LEXUS, for LIFAN, for LINCOLN, for LOTUS, for LUXGEN, for MAHINDRA, for MAN, for MASERATI, for MAYBACH, for MAXUS, for MAZDA, for MCLAREN, for MERCEDES, for MG, for MINI, for MITSUBISHI, for NISSAN , for OPEL , for PAGANI, for PEUGEOT,
For PORSCHE, for QOROS, for RENAULT,for ROLLSROYCE, for SAAB, for SCION, for SEAT, for SKODA, for SMART, for SSANGYONG, for SUBARU, for SUZUKI, for SGMW, for TESLA, for SMART
, for SSANGYONG, for SUBARU, TOYOTA, for TRAUM, for VAUXHALL, for VOLKSWA-GEN , for VOLVO, for ZOTYE,for FIAT, for FORD, for FOTON, for CHRYSLER, for GMC, for DFM, for CADILLAC
, for CHERY, for CHEVROLET , for DODGE,for FAW, for FERRARI, for JAC ,for JAGURE

Package List:

Please note

The “Aluminum Valve" sensor is available intwo colors, black and silver , and We will shipp the Black one.

LAUNCH X431 TSENSOR-05 TPMS Sensor 315MHz/433MHz Dual Frequency Screw-in Adjustable Angle Metal Valve Tire Pressure Monitor System Programmable RF-Sensor Replace OE-Sensor

■LTR-05 is LAUNCH own designed and produced RF-Sensor that provides 98% vehicle coverage to offer the best TPMS solutions for any repair shops or tire shops. It can combine both 315MHz and 433MHz frequencies in one sensor.

■Features with an international leading automotive grade chip, the pressure value of LTR-05 can be accurate to 0.1 BAR. The high Precision Air Valve can effectively prevent air leakage and ensures durability and stability.

■With the outstanding and reliable OE level performance, LTR-05 can replace all originalreplace original tire pressure sensors, copy the original tire pressure sensor data and can be programmed indefinitely.

Tire Pressure Sensor is Important. How Important?

TPMS stands for "Tire Pressure Monitoring System". Each car tire is equipped with a TPMS sensor connected to the tire valve, which is mainly used to automatically monitor the real-time tire pressure, temperature, and acceleration information and alarm drivers stay on top of tire leaks and low pressure, making them aware of any issues before leading to much more severe issues such as:the increased risk of tire blow-out / shorter lifespan of tires / faster tire wear-out / poor driving experience / bad fuel economy Whereas, all these above problems can be effectively avoided.
if you use this LAUNCH RF-Sensor to monitor tire pressure regularly.
This LAUNCH TPMS sensor has the following characteristics and performs the same functions as the OEM sensors but is more affordable:

★1. 2 IN 1 FEATURE: Only 1 Sensor to service nearly every TPMS equipped vehicle to lower repair cost and to have higher install efficiency with no relearn required. The RF-Sensor is 100% cloneable with the original sensor ID and put in the same position.

★2.98% COVERAGE: Featuring the latest and most comprehensive coverage of 98% OE sensors on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road.

★3.EASY TO USE: The maximum sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.

★4.SOLID & DURABLE: Equipped with an automotive grade battery, a replaceable aluminum/rubber valve stem to withstand cold, hot and resistance corrosion, and a high-precision air valve to prevent air leakage, this sensor ensures superior stability and performance.

★5.WARRANTY: LAUNCH guarantees that the sensor is free from material and manufacturing defects for a period of 24 months or for 24,000 miles. Each sensor is marked with a series number to track the sensor quality from the factory to ensure that only the highest quality parts are installed.

5011 V2
I-TPMS
TSGUN
CRT5011E

LAUNCH RF SENSOR Features

Compatible with over 95% OE sensors
Compatible with OE sensors of 315MHz/433MHz
Over-the-air wireless programming
Battery life of 4 to 6 years
Unlimited number of reprogramming for LAUNCH sensors

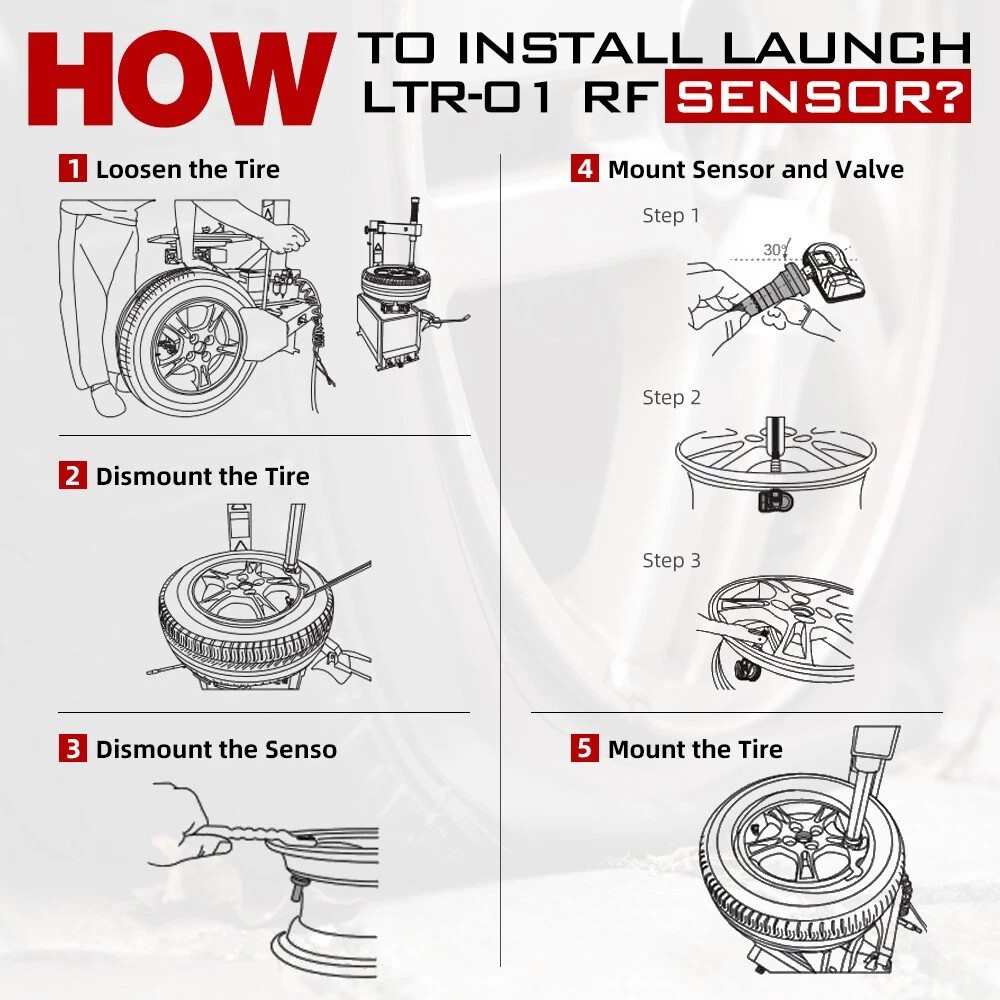

User-friendly Design & Easy Installation Steps

Loosen The Tire: Remove the valve cap and core and deflate the tire.
Demount The Tire: Clamp the tire onto the tire changer, and adjust it to the right position to dismount the bead.
Dismount The Original Sensor: Remove its cap, screw nut, and washer from the valve stem, and then remove the sensor assembly from the rim.
Assemble The New LAUNCH RF-Sensors to The Wheel.
Mount The Tire Bead into The Wheel

How to unstall Sensor

When the programmed LAUNCH MX-Sensors work well with the TPMS system, it brings great benefits to you.

Monitor whether the tires are properly inflated or not on the vehicle's dashboard.
Proper tire pressure inflation optimizes tire performance
optimize the tire's traction
shorten the braking distance
improve the fuel economy
slow the wear of the tread area
Notify the drivers with a flat tire warning light timely to avoid possible danger.
Facilitate all users to replace TPMS sensor timely and reduce extra cost for your car.

99% of Worldwide Vehicle Coverage, No Longer Pay More for Sensor Replacement

Good news! The newly released LAUNCH RF-Sensors feature two types of valves (metal & rubber ) and two frequencies (315MHz & 433MHz ), which can better fit for needs of DIYers, tire dealers, and repair shops. Thanks to its 98% of mainstream vehicle coverage & effective cost, this LAUNCH TPMS sensors can perfectly replace 98% of OE-level sensors and save at least half of the bucks for you.

America: Compatible for Ford, for Lincoln, for Chrysler, for Dodge, for Jeep, for GM, for Cadillac, for Chevrolet, for Buick, for GMC, etc.
Asia: Compatible for Suzuki, for Mazda, for Lexus, for Hyundai, for Infiniti, for Nissan, for Mitsubishi, etc.
Europe: Compatible for BMW, for Bentley, for Bugatti, for VW, for Skoda,for Porsche, for Opel, for Fiat, for Peugeot, for Citroen, for Volvo, for Mini, for Saab, for Land Rover, for Renault, etc.
Note: You can check the vehicle compatibility before purchasing.

LAUNCH RF SENSOR Specification

Operating frequency: 315MHz/433MHz
Battery voltage: 3.0V
RF transmitter power: 5~8dBm
Storage Temperature: -40°C~125°C
Working Temperature: -40°C~125°C
Dimension: 50.8*24*17.8 mm
Weight: 42g (Metal), 48g (Rubber)
IP Rating: IP67

Package list
4PCS*TSENSOR-05/LTR-05
